CONVEYORS

Effective and reliable solutions that offer a guarantee of operation and durability for users

Cometel conveyor

Metal belt conveyors are suitable for the extraction of metal chips from machines and for transport along the production plant to the material´s collection or processing point.

Adaptability

Our engineering department designs and develops the most suitable system for the extraction and treating of chips depending on each particular need and taking into account the space assigned for the installation.

Personalization

The conveyor belt "in-house" manufactured, is completely adaptable to the needs of the material that should be conveyed. Chain shafts and rollers are thermal treated to increase the strength and high durability of the conveying belt.

Tidiness and cleaning

They allow a correct chip extraction, canalizing chips through conveying belts and treating chips with high quality and well developed machines, both in design and performance, keeping the environment or workshop clean, tidy and avoiding the contact of the material by the plant operators.

Reliability

A very reliable and robust system that brings working guarantee and a long lasting experience to the user.

CONVEYORS

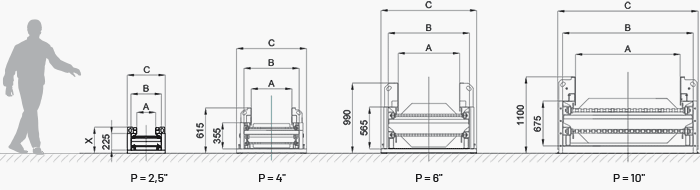

Conveyor size comparison
CONVEYORS P = 2,5"
A B C
C-300-CH 255 415 450
C-450-CH 405 565 600
C-600-CH 555 715 750
C-750-CH 705 865 900
C-900-CH 855 1015 1050
C-1050-CH 1005 1165 1200
C-1200-CH 1155 1315 1350
CONVEYORS P = 4"
A B C
C-300-CH 255 450 600
C-450-CH 405 600 750
C-600-CH 555 750 900
C-750-CH 705 900 1050
C-900-CH 855 1050 1200
C-1050-CH 1005 1200 1350
C-1200-CH 1155 1350 1500
CONVEYORS P = 6"
A B C
C-600-CH 535 805 950
C-750-CH 685 955 1100
C-900-CH 835 1105 1250
C-1050-CH 985 1255 1400
C-1200-CH 1135 1405 1550
C-1500-CH 1435 1705 1850
CONVEYORS P = 10"
A B C
C-750-CH 685 1025 1245
C-900-CH 835 1175 1395
C-1050-CH 985 1325 1545
C-1200-CH 1135 1475 1695
C-1350-CH 1285 1625 1845
C-1500-CH 1435 1775 1995

BELT COMPARISON

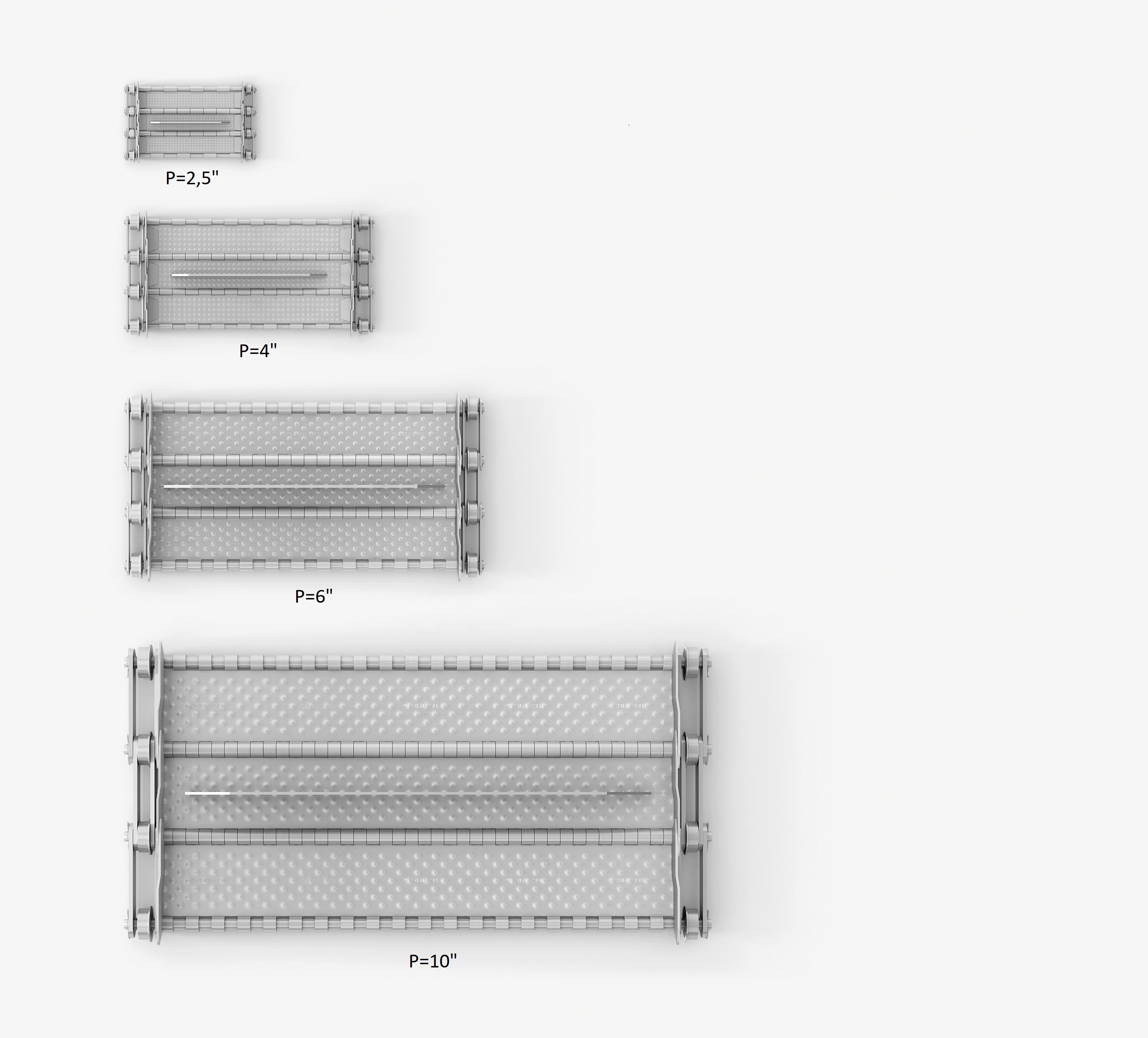

Band size comparison
P=2,5" P=4" P=6" P=10"
H SIDE WINGS 40 mm 60 mm 100 mm 100 mm
Ø HINGE AXIS 12 mm 14 mm 26 mm 35 mm
Ø ROLLER 40/30 mm 55/45 mm 80/70 mm 105/90 mm

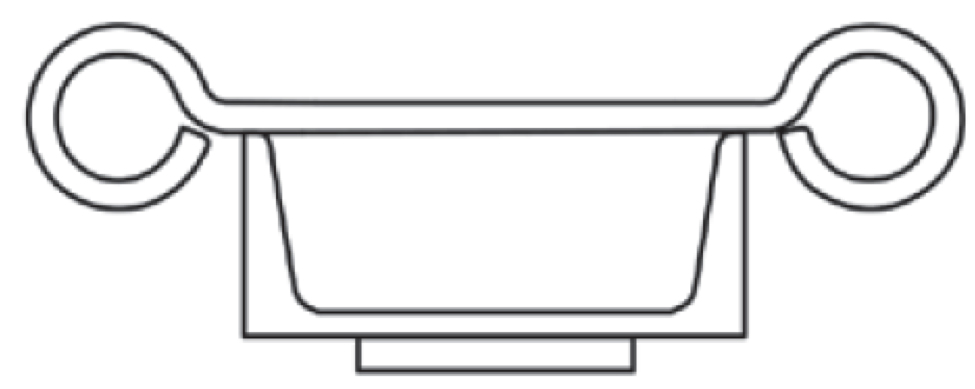

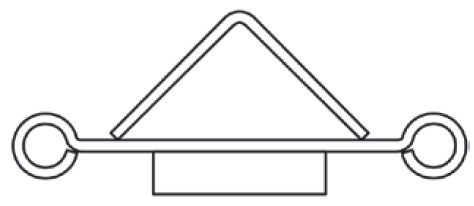

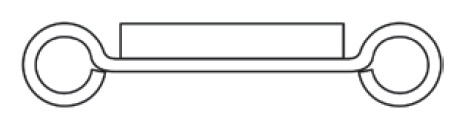

TYPES OF REINFORCEMENTS

  • Cometel reinforcement type
  • Cometel reinforcement type
  • Cometel reinforcement type
