01/06Installation in technical pit - high-tonnage presses

Design of an installation in technical pit for high tonnage presses

1Conveyor in pit
2Fixed transfer hopper
3Output conveyor
4Oscillating distribution tray
21Container

02/06Installation in technical pit - high-tonnage presses

1Conveyor in pit
2Rotatory distribution conveyor
3Automatic rotatory tray

03/06Installation in technical pit - high-tonnage presses

1Conveyor in technical pit
2Fixed transfer hopper
3Logging window
4Top cover
5Rotatory distribution tray
6Container

04/06Installation in technical pit - high-tonnage presses

1Rear tray for collecting material
2Versatile conveyor for AL and FE
3Bidirectional conveyor
4Automatic lubrication system
5Detail of belt
6Rear tensioning system
7Scrap collection box
8Extendable rotatory distribution tray
9Maintenance platform
10Scrap pit
11Electrical cabinet

05/06Installation in channel - medium-tonnage presses

Design of an installation in channel for medium-tonnage presses

1Conveyor in channel
2Output conveyor
3Rotatory distribution tray
4Container

06/06Special installations - complex geometry pit

Design of an installation in a complex geometry pit

1Complex geometry pit

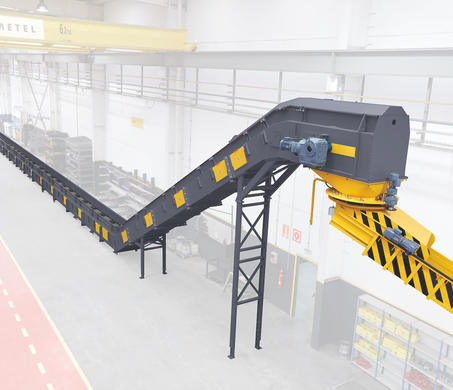

EXTENDABLE ROTATORY TRAY

Thanks to its translation and rotation movement, it allows even distribution over a greater surface.

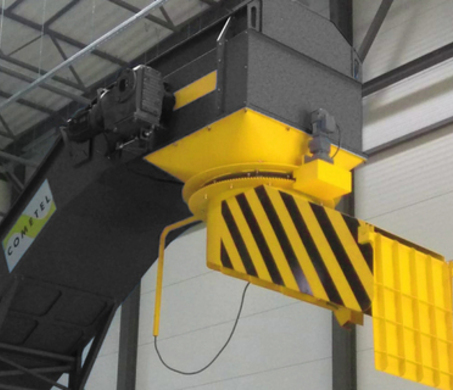

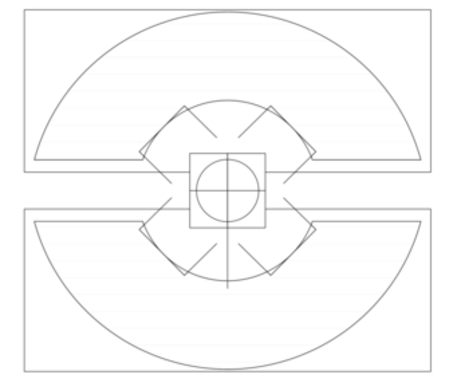

ROTATORY TRAY

This tray achieves even distribution of the material along the containers with its rotatory system.

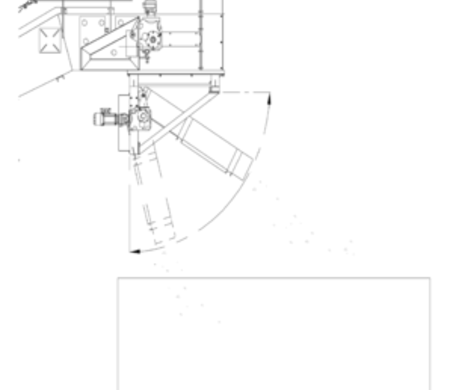

OSCILLATING TRAY

This tray is suitable for filling the container lengthwise.

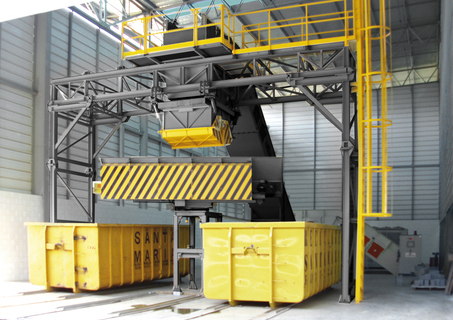

DISTRIBUTOR WITH ROTATION AND TRANSLATION

Supported on a gantry, it distributes the scrap that it collects from the main conveyor and distributes them evenly with fully adjustable and programmable translation and rotation movements, reaching any point in the area for discharge into containers.

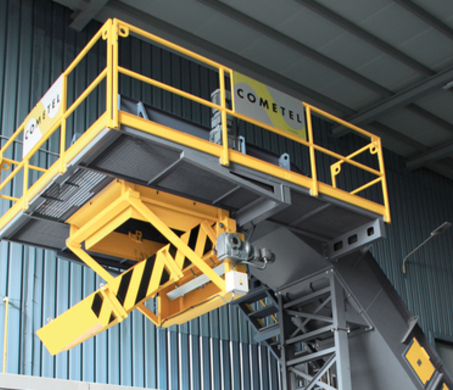

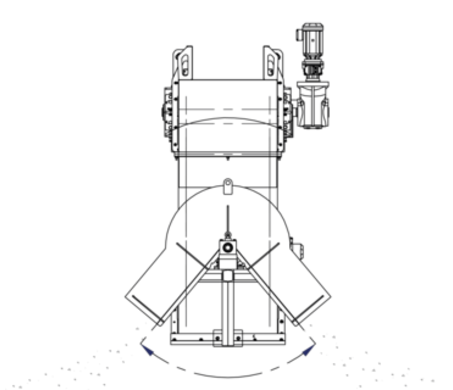

DOUBLE DROP OSCILLATING TRAY

Distribution of material perpendicularly to the direction of movement of the conveyor.

BELTS

	P=2,5"	P=4"	P=6"	P=10"
H SIDE WINGS	40 mm	60 mm	100 mm	100 mm
Ø HINGE AXIS	12 mm	14 mm	26 mm	35 mm
Ø ROLLER	40/30 mm	55/45 mm	80/70 mm	105/90 mm
